Piezoelectric Transducer

May 31, 2024 Post a Comment

Piezoelectric transducer

A piezoelectric transducer is an instrument that applies the piezoelectric effect to measure variations in strain, temperature, acceleration, pressure, or force by transforming this energy into an electrical load.

What is piezoelectric transducer and example?

A piezoelectric transducer is a device that produces an acoustic wave from a radio-frequency (RF) input or, conversely, converts an acoustic wave to an RF output. Single crystals of lithium niobate are particularly suitable for these applications, because they exhibit large electromechanical coupling factors, have low…

What is piezoelectric principle?

Piezoelectric Effect is the ability of certain materials to generate an electric charge in response to applied mechanical stress. The word Piezoelectric is derived from the Greek piezein, which means to squeeze or press, and piezo, which is Greek for “push”.

What is the working principle of piezoelectric transducers?

The working principle of a Piezoelectric Transducer is based on the fact that when a mechanical force is applied on a piezoelectric crystal, a voltage is produced across its faces. Thus, mechanical phenomena is converted into electrical signal.

Is piezoelectric active or passive?

Piezoelectric transducer/sensor is a active transducer and it does not need external power supply as it is self generating. It is the devices which uses piezoelectric effect to measure the changes in pressure, temperature, acceleration, strain by converting them to electrical pulse.

Is piezoelectric transducer active or passive?

Piezo Electric Transducer It is one sort of active transducer, and the primary function of this is to produce an electrical quantity. This electrical quantity is equivalent to the input of the pressure. Three substances that produce a piezoelectric effect are Quartz, Rochelle salts, and Tourmaline.

Where is piezoelectric used?

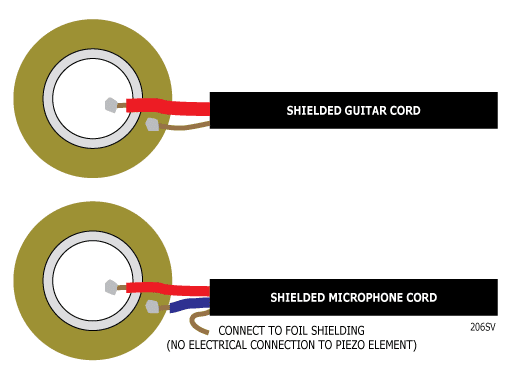

Sensors are used in a variety of applications such as microphones, amplified guitars, and medical imaging equipment. A piezoelectric microphone is used in these devices to detect pressure variations in sound waves, which can then be converted to an electrical signal for processing.

What is an example of a piezoelectric?

Some examples of piezoelectric materials are PZT (also known as lead zirconate titanate), barium titanate, and lithium niobate. These man-made materials have a more pronounced effect (better material to use) than quartz and other natural piezoelectric materials.

Is piezoelectric AC or DC?

Piezoelectricity, also called the piezoelectric effect, is the ability of certain materials to generate an AC (alternating current) voltage when subjected to mechanical stress or vibration, or to vibrate when subjected to an AC voltage, or both.

What causes piezoelectric effect?

The piezoelectric effect results from the linear electromechanical interaction between the mechanical and electrical states in crystalline materials with no inversion symmetry.

What are piezoelectric elements?

Piezoelectric elements have a unique characteristic whereby the element elongates or vibrates when an external voltage is applied, similar to how it generates electricity when external pressure is applied.

Who discovered piezoelectricity?

March 1880: The Curie Brothers Discover Piezoelectricity. Brothers and colleagues: Jacques (left) and Pierre (right) Curie, discoverers of the piezoelectric effect.

What are the advantages and disadvantages of piezoelectric transducer?

The piezoelectric materials possess advantages of high sensitivity, high resonance frequency, high stability, etc. The piezoelectric materials can produce only electrical response to the dynamic mechanics. One disadvantage of piezoelectric materials is that they cannot be used for truly static measurements.

What is output of piezoelectric?

One piezoelectric transducer can output 0.058-J energy in a single 0.7-MPa loading. However, higher output power does not guarantee a higher energy output.

What can be measured using piezoelectric transducer?

A piezoelectric transducer is used for measuring non-electrical quantities such as vibration, acceleration, pressure, and the intensity of sound. Piezoelectric accelerometer: It is a sensor that is used to measure acceleration by using the piezoelectric crystal.

What is the type of piezoelectric sensor?

The piezoelectric sensor can be classified into four types: piezoelectric force sensor, piezoelectric pressure sensor, piezoelectric acceleration sensor, and Polymer pressure sensor.

Why RTD is called passive transducer?

An RTD is a passive device. It does not produce an output on its own. External electronic devices are used to measure the resistance of the sensor by passing a small electrical current through the sensor to generate a voltage.

Is LVDT an active transducer?

LVDT is an example of a passive transducer. LVDT is used as an inductive transducer that converts motion into an electrical signal.

Why does piezoelectric transducer require amplifier?

Typical values for the piezoelectric coefficient are in the tens or hundreds of picocoulombs per newton. One newton is a significant amount of force, whereas 100 picocoulombs is a miniscule amount of charge. Clearly, then, we will need an amplifier that can convert the sensor's charge into a usable signal.

Is piezoelectric active sensor?

A piezoelectric sensor senses mechanical changes in the environment and produces a useable electrical signal output, which can be used to measure the mechanical changes or generate displacement with the electrical output. Piezo sensors take on two forms to accomplish this: active and passive.
